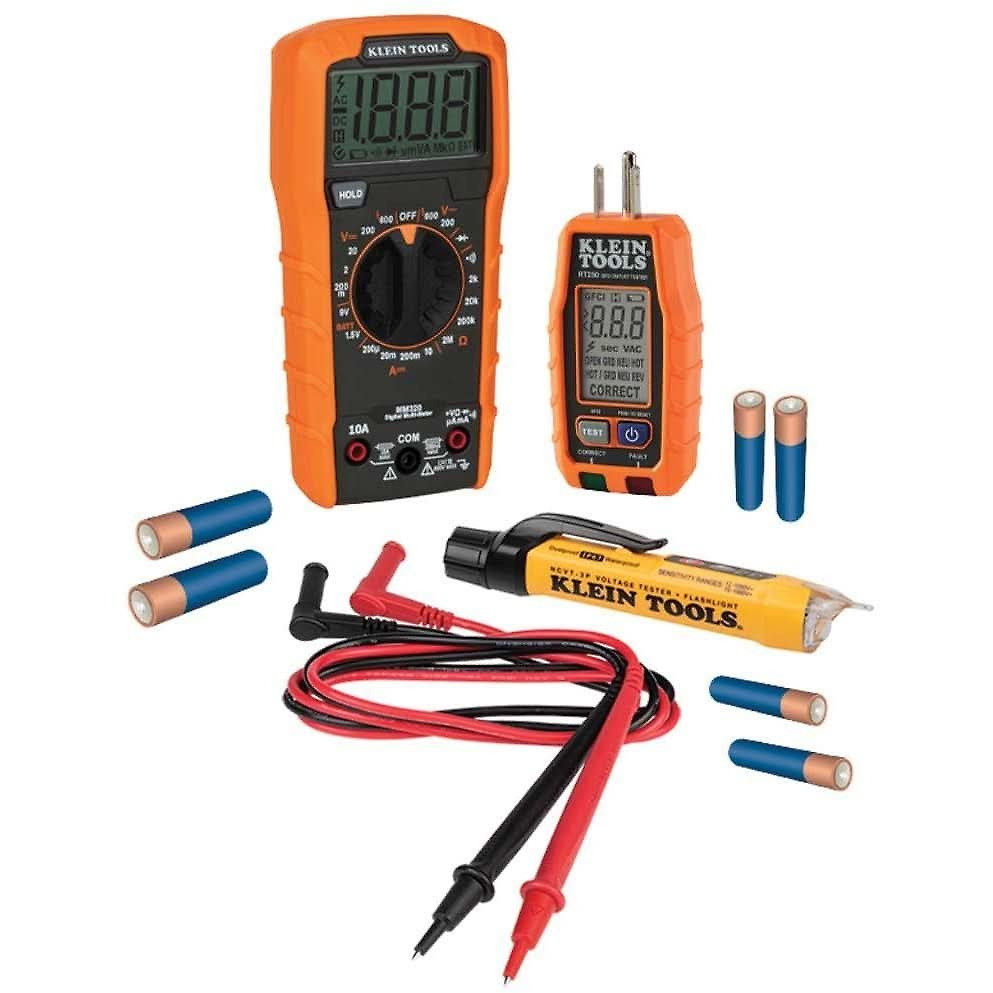

Klein Tools Electrical Test Kit includes a Manual-Ranging Digital Multimeter (Cat. MM320) with right-angle test leads. Dual Range Non-Contact Voltage Tester with Flashlight. 12 to1000 VAC (Cat. No. NCVT3P). and a GFCI Receptacle Tester with LCD (Cat. No. RT250). This convenient kit features products for a variety of applications with safety and reliability in mind. Comes with all required batteries.
Features:
- Electrical Kit with Testers solve various electrical applications; Manual-Ranging Digital Multimeter. Dual Range Non-Contact Voltage Tester with Flashlight. and GFCI Receptacle Tester with LCD
- Digital Multimeter MM320 measures up to 600V AC/DC voltage. 10A DC current and 2MOhms resistance; also tests batteries. diodes. and continuity
- Voltage Tester NCVT3P has dual-range capabilities to detect from 12 to 1000 VAC or 70 to 1000 VAC for a broad variety of low-voltage or standard voltage applications
- Bright flashlight illuminates work area and may be used independent of voltage detection function
- GFCI Receptacle Tester RT250 features a large backlit LCD readout of voltage. and clear indication of wiring conditions. including patent pending detection of Open Neutral / Open Ground wiring faults
- LCD readout on receptacle tester shows the time required to trip a GFCI device; for use on 3-wire. North American 120V electrical outlets only
- Digital Multimeter MM320 includes right-angle test leads and all required batteries
- MM320 is CAT III safety rated for 600V
Specifications:
- Type:Electrical Test Kit
- Application:Multimeter Measures up to 600V AC/DC Voltage. 10A DC Current and 2MΩ Resistance. Tests Batteries. Diodes. and Continuity
- Special Features:Auto Power-Off on MM320 Multimeter
- Material:ABS/Electronics
- Batteries:MM320: 2 x AAA
- Drop Protection:MM320: 3.3′ (1 m)
- Display:MM320: 2000 Count LCD
- Functions:Hold
- Voltage:MM320: 600V AC/DC
- Current:10A
- Ohms (Resistance):2MΩ
- Standard:MM320: CAT III 600V; CE; UKCA
- Included:MM320 Manual-Ranging Digital Multimeter with Right-angle Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; RT250 GFCI Receptacle Tester with LCD; Instructions; and All Required Batteries
- Overall Length:6.39” (162.4 cm)
- Overall Height:1.80” (45.7 cm)
- Overall Width:3.12” (79.4 cm)
- Weight:8.2 oz (231 g)
Warnings:
- Do not attempt to measure resistance or continuity on live circuits.
- Read. understand and follow all instructions. cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not use the meter during electrical storms or in wet weather. and do not use the meter or test leads if they appear to be damaged.
